Efficiency Meets Versatility in Keg Washing and Filling

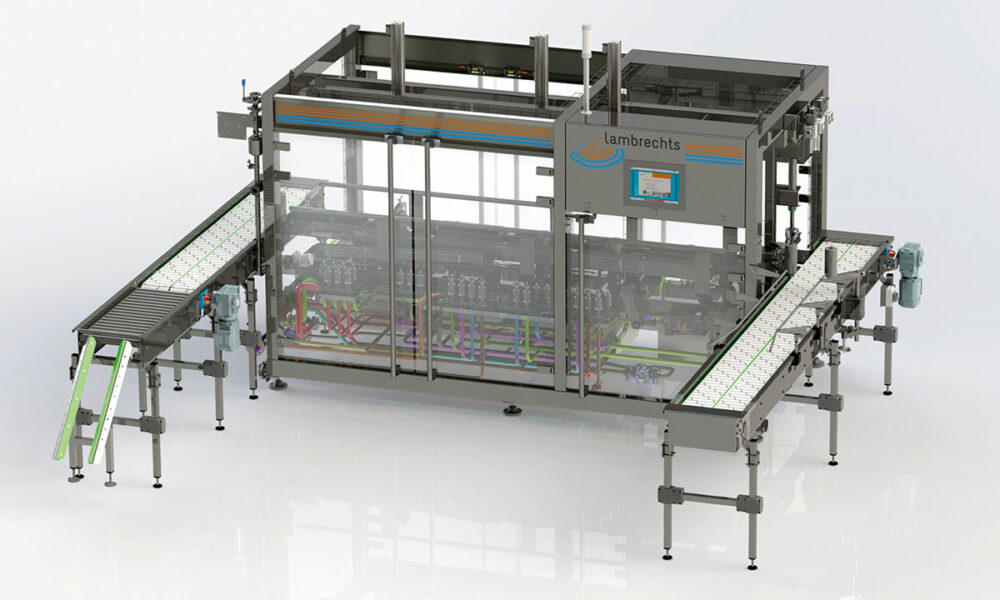

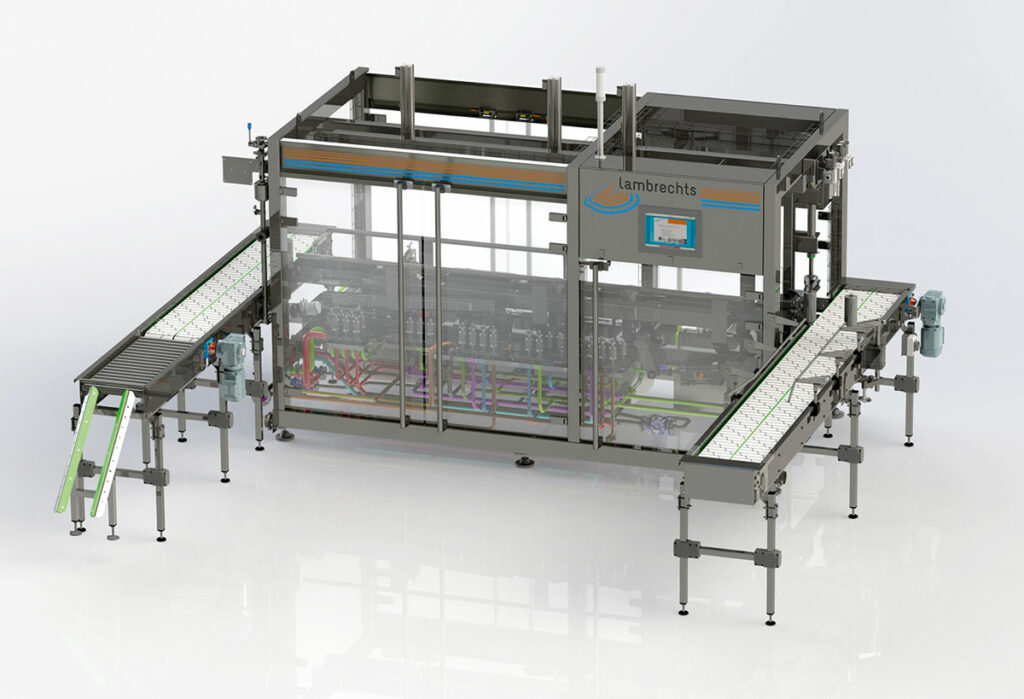

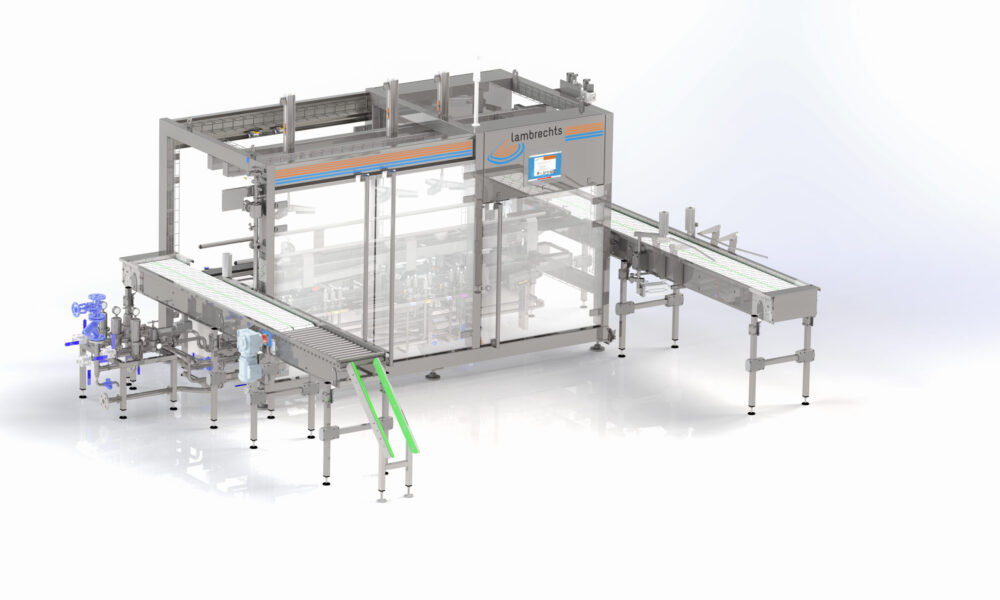

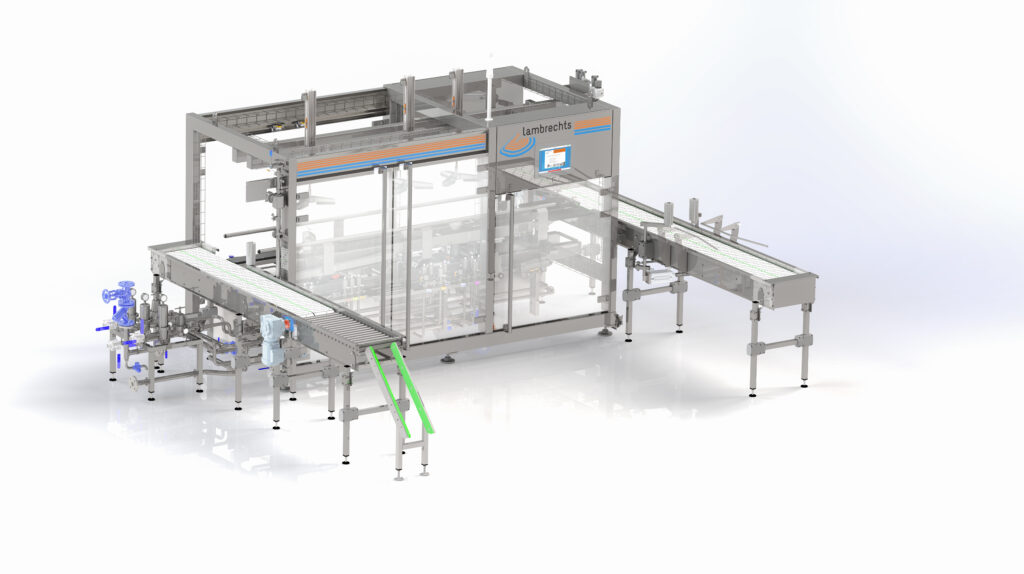

The Slimline 50 Type 2-1 is an advanced system designed to help breweries scale their production efficiently without sacrificing quality. From streamlined cleaning to precise filling, this machine is a workhorse for mid-sized operations.
This installation is equiped with its own built in acid, caustic & mixed water detergent set. The built in external keg washer comes as an option.
The setup consist of a straigth ‘walking beam’ system with keg pull through, starting at one side and leaving the machine on the other side.
Many breweries worldwide have chosen this attractive solution to sustain their current growth and to bridge capacity needs in a short time span and with limited footprint.
Process
- Combined internal and external cleaning
- Integrated detergent set (up to 4 media tanks)
- Completely piped and wired
- Short and easy installation
- Integrated control cabinets
- Simatic S7 PLC with touchscreen control
- Shipping in 20′ ocean container
- Small Footprint
- Remote service and diagnostic system
- Detergent soaking time up to 3 min
- 2 to 4 active washing heads
- 1 filling head with auto shut off control
