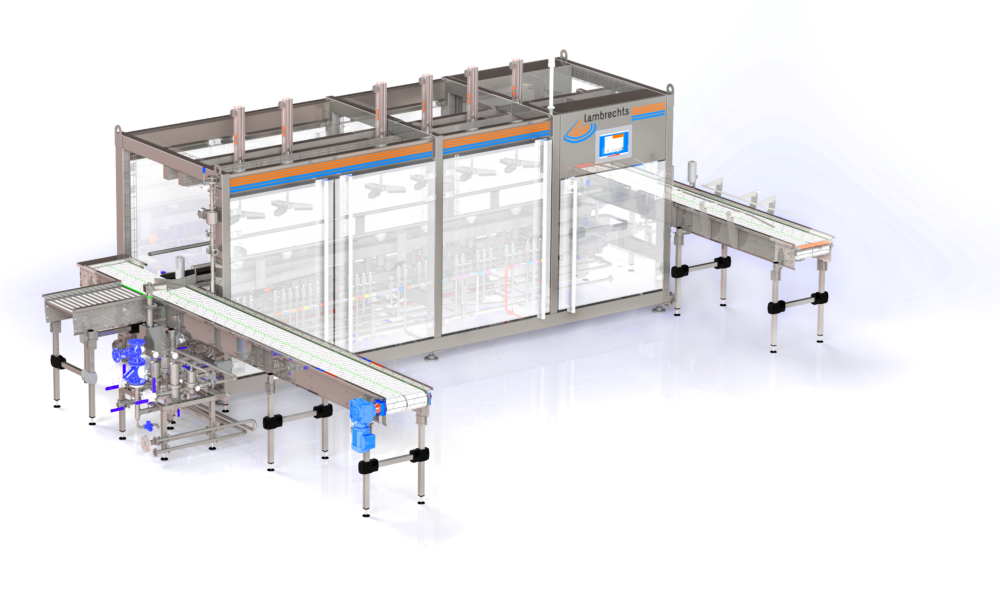

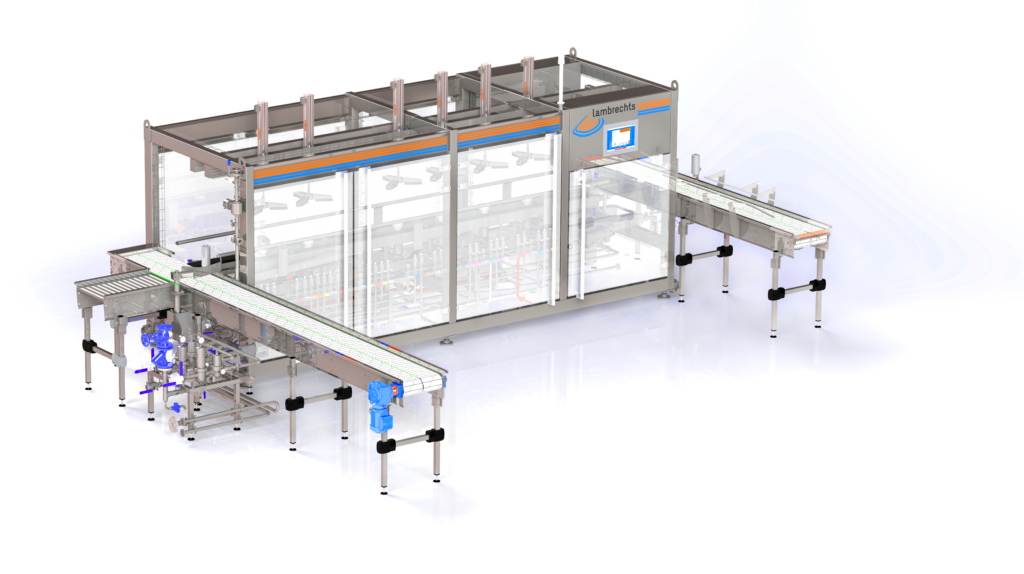

The Slimline Monobloc 60 is an all-in-one keg Washing & Filling solution which was developed to fit in one 20 foot ocean container.
This installation is equiped with its own built in acid, caustic & mixed water detergent set. The built in external keg washer comes as an option.

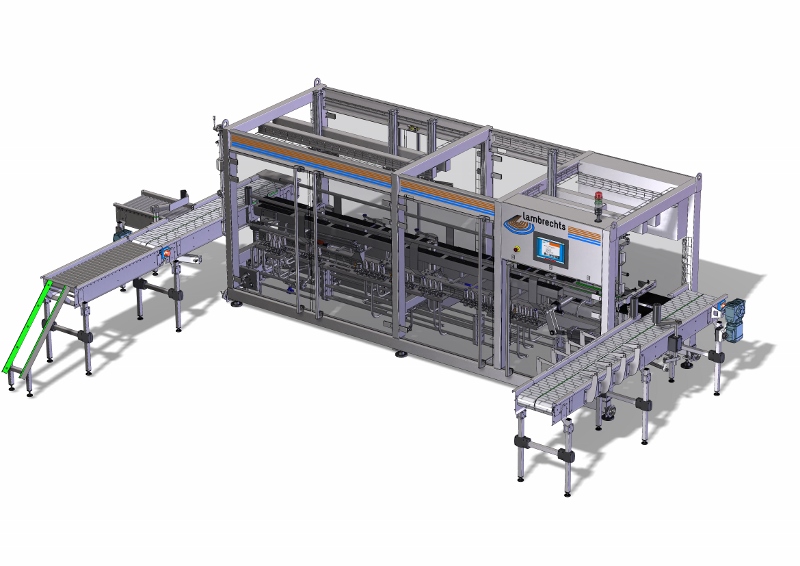

The setup consist of a straigth ‘walking beam’ system with keg pull through, starting at one side and leaving the machine on the other side.
Many breweries worldwide have chosen this attractive solution to sustain their current growth and to bridge capacity needs in a short time span and with limited footprint.
Process
- Combined internal and external cleaning
- Integrated detergent set (up to 5 media tanks)
- Completely piped and wired
- Short and easy installation
- Integrated control cabinets
- Simatic S7 PLC with touchscreen control
- Double station external washer
- Shipping in 20′ ocean container
- Small Footprint
- Remote service and diagnostic system
- Detergent soaking time up to 3 min
- 3 to 4 active washing heads
- One filling head with auto shut off control
